Quick Details

  • Condition: New
  • Type: screw conveyor
  • Material: Stainless Steel
  • Material Feature: Heat Resistant
  • Structure: Conveyor System
  • Load Capacity: as request
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: HENG YU
  • Model Number: LS200
  • Voltage: as request
  • Power(W): 0.4kW - 22kW
  • Dimension(L*W*H): can be changed as request
  • Certification: ISO9001:2008
  • After-sales Service Provided: Engineers available to service machinery overseas
  • name: stainless steel hopper conveyor screw feeder
  • hopper: tailor made
  • type: inclination conveyor
  • drive system: reducer
  • mobile ability: feet with wheels
  • voltage: your local market
  • conveyor: customized
  • service: technical guidance
  • price: competitive
  • structure: roller conveyor

Packaging & Delivery

Packaging Details The conveyor screw is packed in standard exporting wooden case
Delivery Time within 15 working days after receipt of your first deposite
Product Description

Introduction of screw conveyor

The conveyor screw or auger conveyor is a mechanism that uses a rotating helical screw blade, usually within a tube, to move liquid or granular materials. They are used in many bulk handling industries. Screw conveyors in modern industry are often used horizontally or at a slight incline as an efficient way to move semi-solid materials, including food waste, wood chips, grains, animal feed, boiler ash and many others..

                                                                         Specific Information of Conveyor screw
Item
HYLS160
HYLS200
HYLS200
HYLS300
HYLS400
Model diameter
160mm
193mm
250mm
300mm
400mm
Length of conveyor
2.5 -6m
4.5-12m
6-9m
6-9m
6-9m
Rotary speed of machine
100 r/min
209 r/min
209 r/min
174 r/min
174 r/min
Working angle
≤20°
≤30°
≤30°
≤30°
≤30°
Conveying capacity
25 t/h
35 t/h
50 th
75 th
80 th
Power of motor
3-7.5 kw
4-11kw
7.5- 11 kw
11-18.5 kw
11-18.5 kw
 Multi-angle to Know This Type of Handling Equipment
Multiple inlet and discharge points
spiral conveyor can have multiple inlet and discharge points. Bulk materials can be conveyed and distributed to various locations as required.
How can we do once we face the heat handling material?
spiral conveyor can be used to cool, heat or dry products in transit. Depending on the heat transfer requirements, a screw conveyor can be jacketed, or a hollow-flight design utilized to provide the necessary heat transfer for the application.
Shaft and shaft-less screw conveyor
spiral conveyor can be designed without a center pipe. This type of conveyor is called a shaft-less screw conveyor and is designed for conveying wet, sticky, sluggish products.
Multi-type supplied as request
spiral conveyor are totally enclosed to contain the product and prevent spillage. Screw conveyors can be utilized in the horizontal, vertical or any inclined position depending upon the characteristics of the product being conveyed.
Difference with belt conveyor
spiral conveyor are very compact and adaptable to congested locations. Screw conveyors do not have a return similar to a belt or drag conveyor.
Certifications
Detailed Images

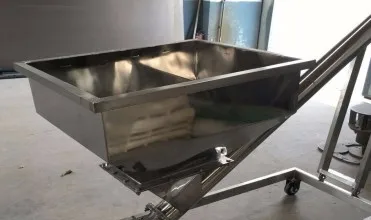

Hopper

Hopper is contact with the model inlet, which for store the small volumes and feeding the bulk material.

The hopper size can be customized by customers..

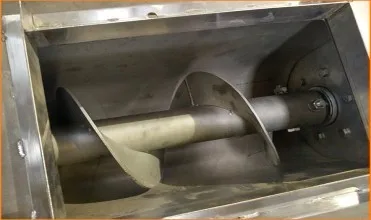

Screw shaft.

Screw shaft is one of main parts of screw conveyor, which include the helical blade.
When the hollow axes with screw flight rotates along the jacketed trough, the bulk material feed into the trough and screw flight was hold back by the friction resistance acted on the wall of trough during running, the screw flight push the material and make the material do axial movement.

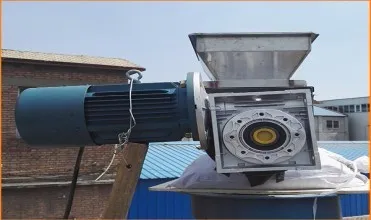

Motor and reducer.

Motor and reducer is the driver of the model, which contact with the reducer and can be control the speed and feeding the material by uniform.
Meanwhile, the working power can be customized
.

Advantages of screw conveyor.

1) Simple structure in linear type ,easy in installation and maintation.
2) Ideal for conveying powders, granules and blends.
3) Cost-effective when compared to other conveying devices such as belt conveyor.
4) Totally enclosed for corrosive or hazardous requirements
5) Custom engineered for your specific application.

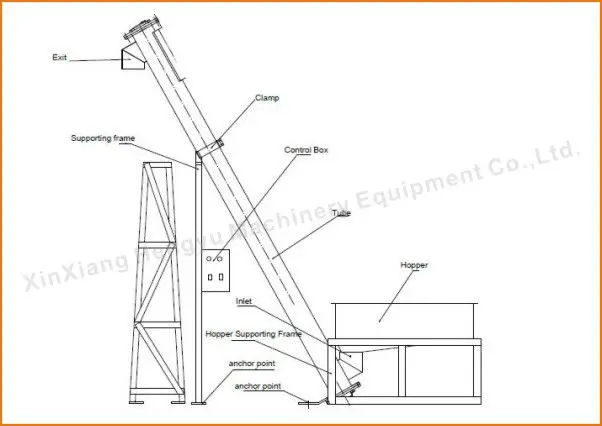

Model pictures for reference:

Application of the screw conveyor.

The conveyor screw are suitable for continuously conveying loose materials such as powder, granular and small piece material, which includes: clay powder, pulverized coal, cement, sand, grain, small piece of coal , cobble, and cast iron filings, etc. While it is not applicable for materials with high viscosity and easy to be curdled.

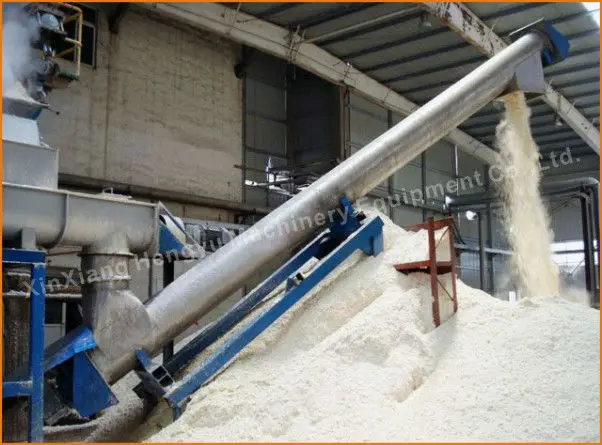

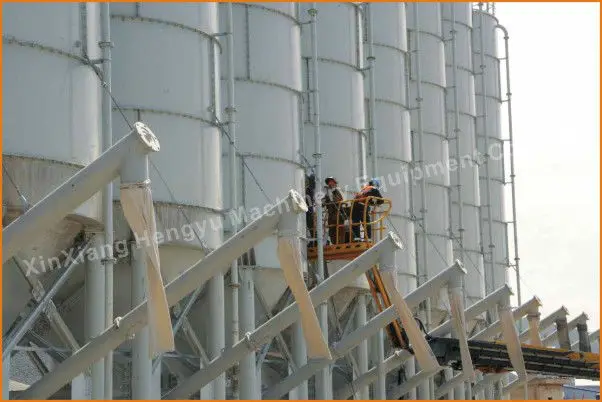

Model in working site

To be a leading manufacturer of bulk material handling equipment, we provide solutions to your individual material handling problems, We will design our equipment to suit your application and not ask you to compromise your requirements to fit our equipment.

Our Service

Company introduction

Xinxiang Hengyu Machinery Equipment Co., Ltd. is a mechanical design, manufacturing, sales company. She is specialized in dealing with a wide range of screening and conveying system for solid, powder and liquid in various industries.


Our company has her own patented technology and a number of high-tech technical personnel. We can design and manufacture products according to customer’s special demands. For many years, our company is guided by requirements of market and customer, and we constantly update and improve our products to satisfy requirements of customers, market and different materials. We always believe-The only thing remains unchanged in the world is change itself, only by constantly improving can make ourselves live forever.

In future we adhere to –high starting point of technology, high quality of service. In marketing, we wish to see devolvement with friends from overseas and domestic on fair cooperation and mutual benefit..

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* 12 months warranty.

* 24 hours online service providing free quick-wear parts.

* Low charge for continue maintenance after warranty for big order, engineers available to service machinery overseas.

Packing & Delivery


Packaging picture.

The model be packed in standard plywood wooden case.(fumigation free)
